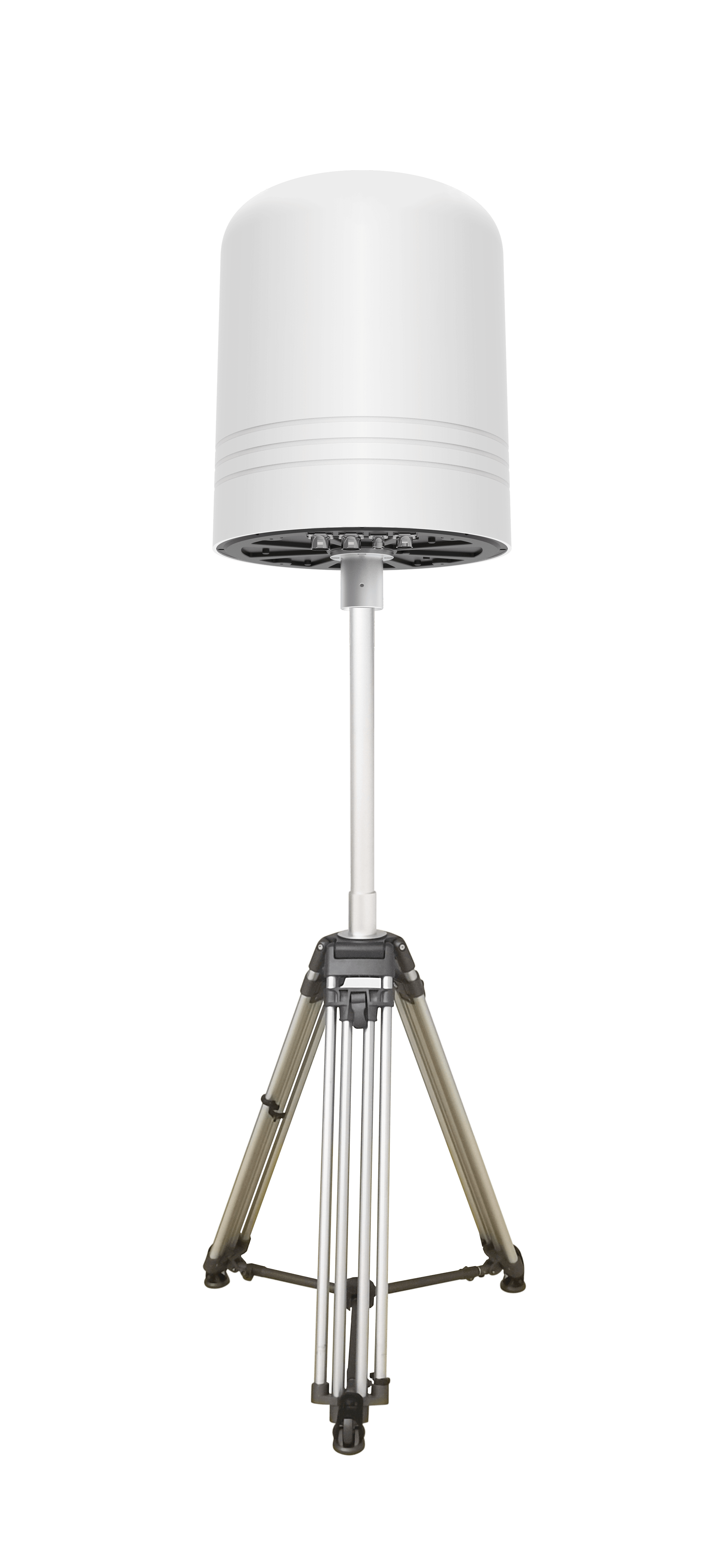

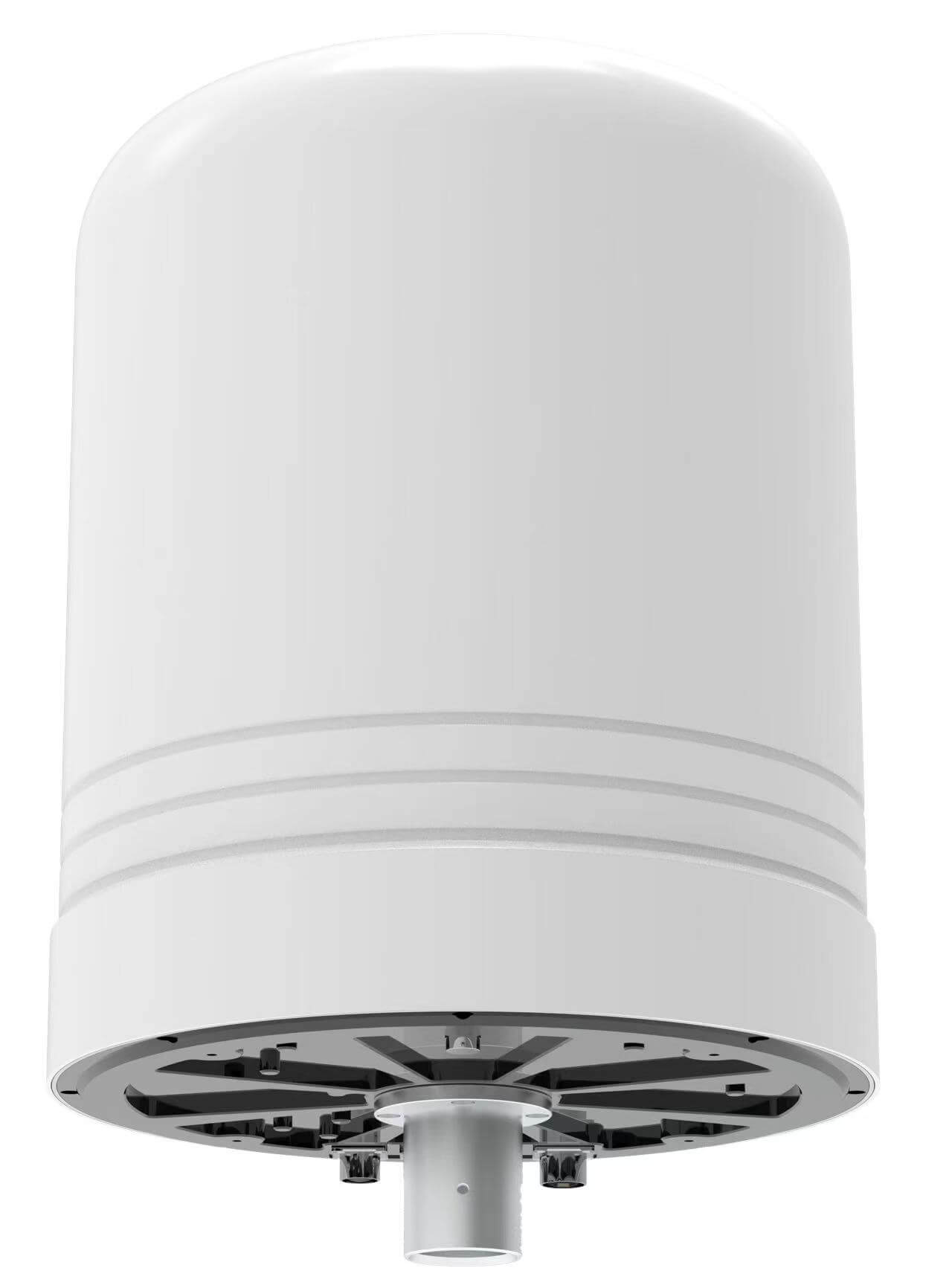

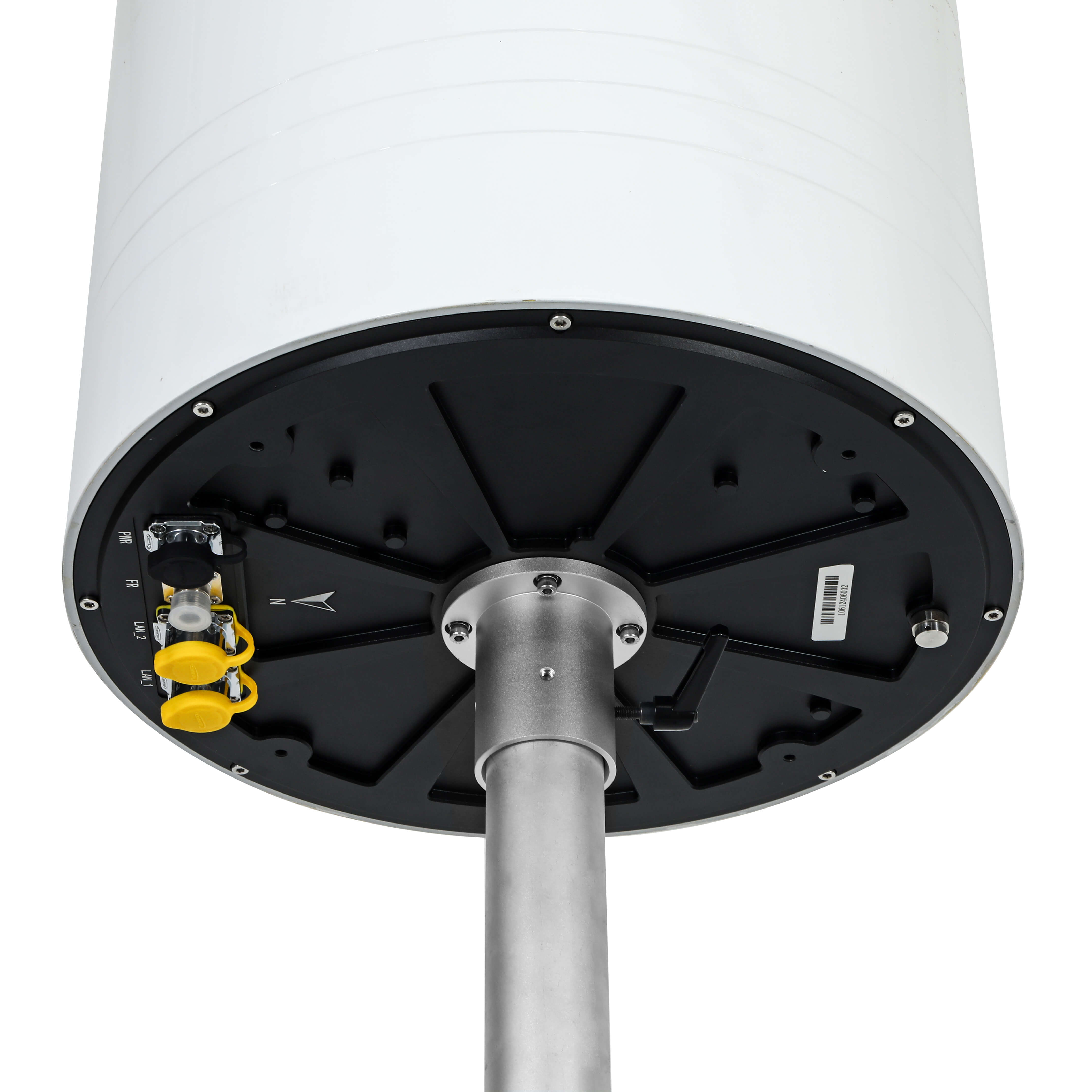

BT2414 is a drone detector with drone intrusion alarm, identification, direction-finding and networking location capabilities. One signal device detects and finds drone direction. Multiple devices network to locate drones via TDOA (time difference of arrival) algorithm. It emits no signal which makes it interference-free and suitable for urban environment.
Product features
Drone positioning:Multiple BT2414 network to locate drone.
Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.
Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.
Abnormal signal identification: The system can identify abnormal signals based on the spectrum scanning results and display them in the list to assist security personnel in handling abnormal signals.
Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.
Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data.
Detection Record: The detection record list can retain historical detection records, including multi-dimensional information such as drone serial number, model, frequency, etc.

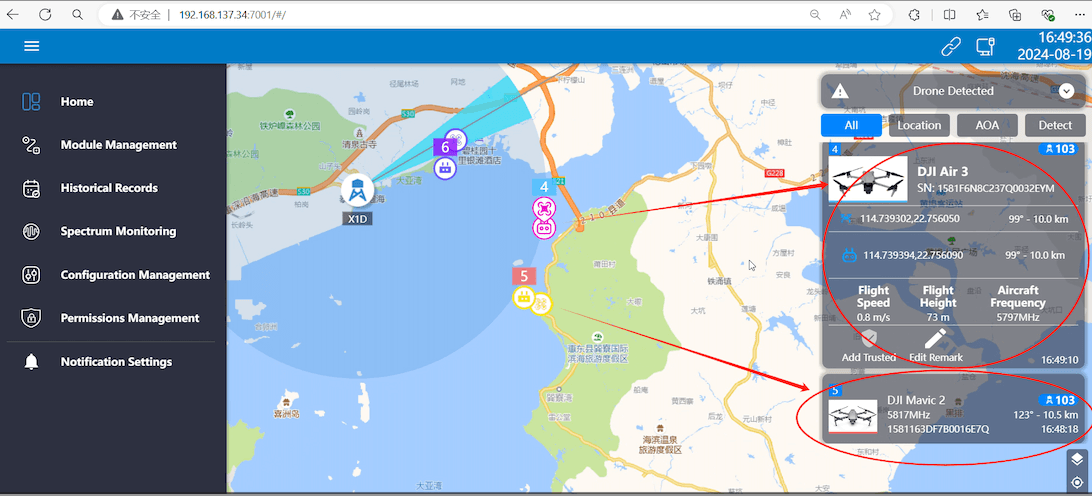

Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).
Standard API interface: The device has an API interface that can upload data to a specified system.
Integrated design: The equipment adopts an integrated design, which is easy to install.
Full range of detection models: capable of detecting and recognizing over 500 types of models, the system can recognize and detect common brand drones such as DJI, Autel, Dahua, Yuneec, as well as the vast majority of models on the market such as self-made walkthrough machines and WiFi machines.
Direction finding distance: In open environments, the direction finding distance can reach over 4km.
Passive detection: The equipment does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly.
Three all-around readiness: The equipment operates continuously 24/7, 24/7 (suitable for complex electromagnetic environments and harsh weather environments), and provides all-around (omnidirectional detection of drone intrusion) to ensure low altitude safety in the core protection area.
| Number | Project | Parameter | Remarks |
| 1 | Detection frequency band | 100MHz~6GHz | |
| 2 | Detection distance | 5-7km | |
| 3 | Number of detection targets | ≥20 sorties | meanwhile |
| 4 | Detection mode | 360°Passive detection | |
| 5 | Direction finding frequency band | 100MHz~6GHz | |
| 6 | Direction finding distance | ≥3km | |
| 7 | Number of direction finding targets | Not less than 3 sorties | meanwhile |
| 8 | Directional accuracy | ~10° | |
| 9 | DF refresh rate | 10-30 times/minute | |
| 10 | positioning accuracy | ≤20m | |
| 11 | Number of positioning trajectories | ≥5 sorties | meanwhile |
| 12 | Scan spectrum range | 100MHz~6GHz | |
| 13 | Detecting and identifying drone models | Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market |
Product Performance Indicators - jamming
| No. | Index | Parameter | Notes |
| 1 | Operation mode | Radio jamming suppression | |
| 2 | Object of action | UAV image transmission, flight control link, navigation signal | |
| 3 | Jamming frequency band | (820±10)MHz~(960±10)MHz; (1550±10)MHz~(1640±10)MHz; (2400±10)MHz~(2510±10)MHz; (5150±10)MHz~(5320±10)MHz; (5700±10)MHz~(5900±10)MHz | Frequency customizable |
| 4 | Transmitting power | Output power of each port (average power): Channel 1:(47±1)dBm; Channel 2:(47±1)dBm; Channel 3:(47±1)dBm; Channel 4:(47±1)dBm; Channel 5:(47±1)dBm | Power customizable |
| 5 | Reverse distance | 1km-2km (there may be some differences depending on the environment and model) | Depending on the environment |
| 6 | Counter mode | Directional and omnidirectional |
Mechanical parameters
| Number | Index | Parameter | Remarks |
| 1 | Weight | ~15kg | Without power adapter |
| 2 | size | φ*H (420*530) ± 5mm |
Electrical characteristics
| Number | Index | Parameter | Remarks |
| 1 | power dissipation | ≤50W | |
| 2 | supply voltage | AC 220V/DC 12V |
Environmental adaptability
| Number | Index | Parameter | Remarks |
| 1 | working temperature | -40~65ºC | |
| 2 | Protection level | IP65 |

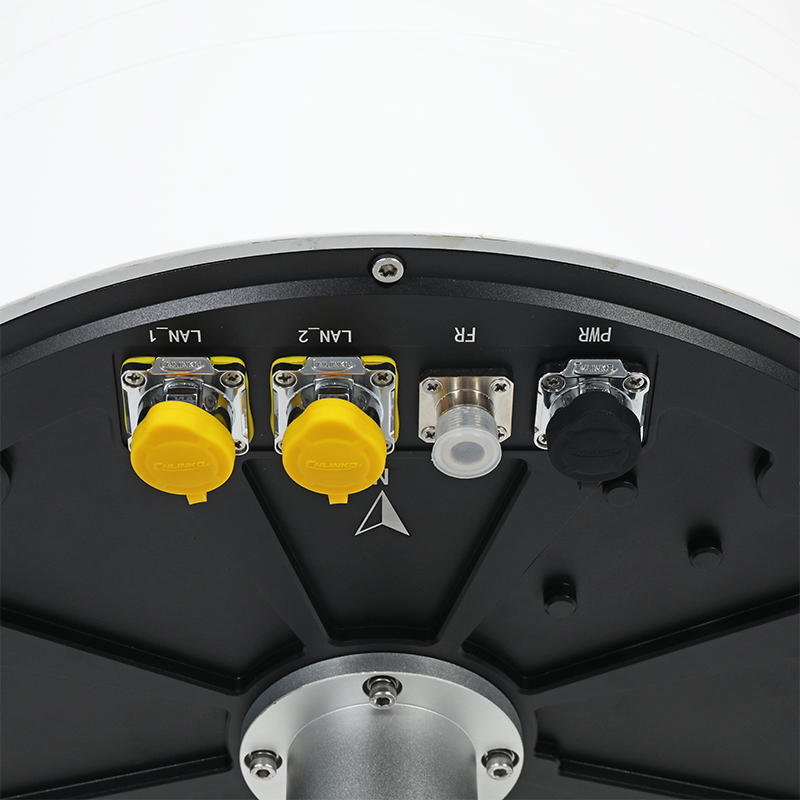

This product mainly consists of a device host, power adapter, network cable, router, bracket, and five parts, as shown in the table below:
Number | Name | Quantity | Unit |
1 | Device host | 1 | Pc |
2 | Ac adapter | 1 | Pc |
3 | Internet cable | 1 | Pc |
4 | Router | 1 | Pc |
5 | Device bracket | 1 | Pc |
1） Drone positioning：Multiple devices network to locate drone.
2） Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.
3） Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of Spectrometer and waterfall plots.
4） Abnormal signal identification: The system can identify abnormal signals based on the spectrum scanning results and display them in the list to assist security personnel in handling abnormal signals.
5） Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
6） Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.
7） Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
8） Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data.
9） Detection Record: The detection record list can retain historical detection records, including multi-dimensional information such as drone serial number, model, frequency, etc.
10） Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).
11） Standard API interface: The device has an API interface that can upload data to a specified system.
12） Integrated design: The equipment adopts an integrated design, which is easy to install.
1） Full range of detection models: capable of detecting and recognizing over 500 types of models, the system can recognize and detect common brand drones such as DJI, Autel, Dahua, Yuneec, as well as the vast majority of models on the market such as self-made walk-through machines and WiFi machines.
2） Direction finding distance: In open environments, the direction finding distance can reach over 4km.
3） Passive detection: The equipment does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly.
4） Three all-around readiness: The equipment operates continuously 24/7, 24/7 (suitable for complex electromagnetic environments and harsh weather environments), and provides all-around (omnidirectional detection of drone intrusion) to ensure low altitude safety in the core protection area.
No. | Project | Parameter | Remarks |
1 | Detection frequency band | 100MHz～6GHz | |
2 | Detection distance | 2～5km | |
3 | Number of detection targets | ≥20 sorties | meanwhile |
4 | Detection mode | 360°Passive detection | |
5 | Direction finding frequency band | 2GHz～6GHz | |
6 | Direction finding distance | ≥3km | |
7 | Number of direction finding targets | Not less than 3 sorties | meanwhile |
8 | Directional accuracy | ～10° | |
9 | DF refresh rate | 10-30 times/minute | |
10 | positioning accuracy | ≤20m | |
11 | Number of positioning trajectories | ≥5 sorties | meanwhile |
12 | Scan spectrum range | 100MHz～6GHz | |
13 | Detecting and identifying drone models | Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market | |
14 | Weight | ～15kg | Without power adapter |
15 | size | φ*H (420*530) ± 5mm | |
16 | power dissipation | ≤50W | |
17 | supply voltage | AC 220V/DC 12V | |
18 | working temperature | -40~65℃ | |
19 | Protection level | IP65 |
