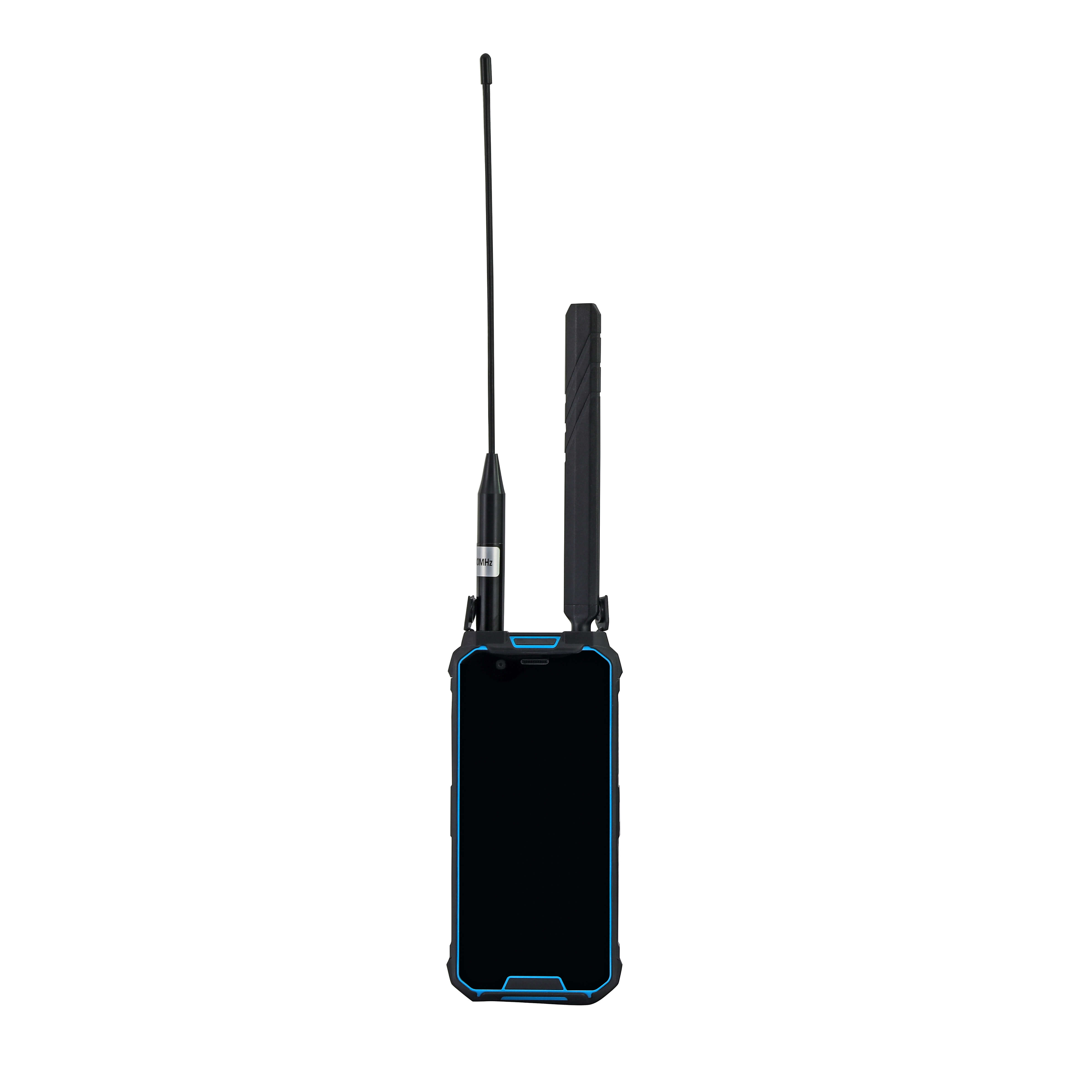

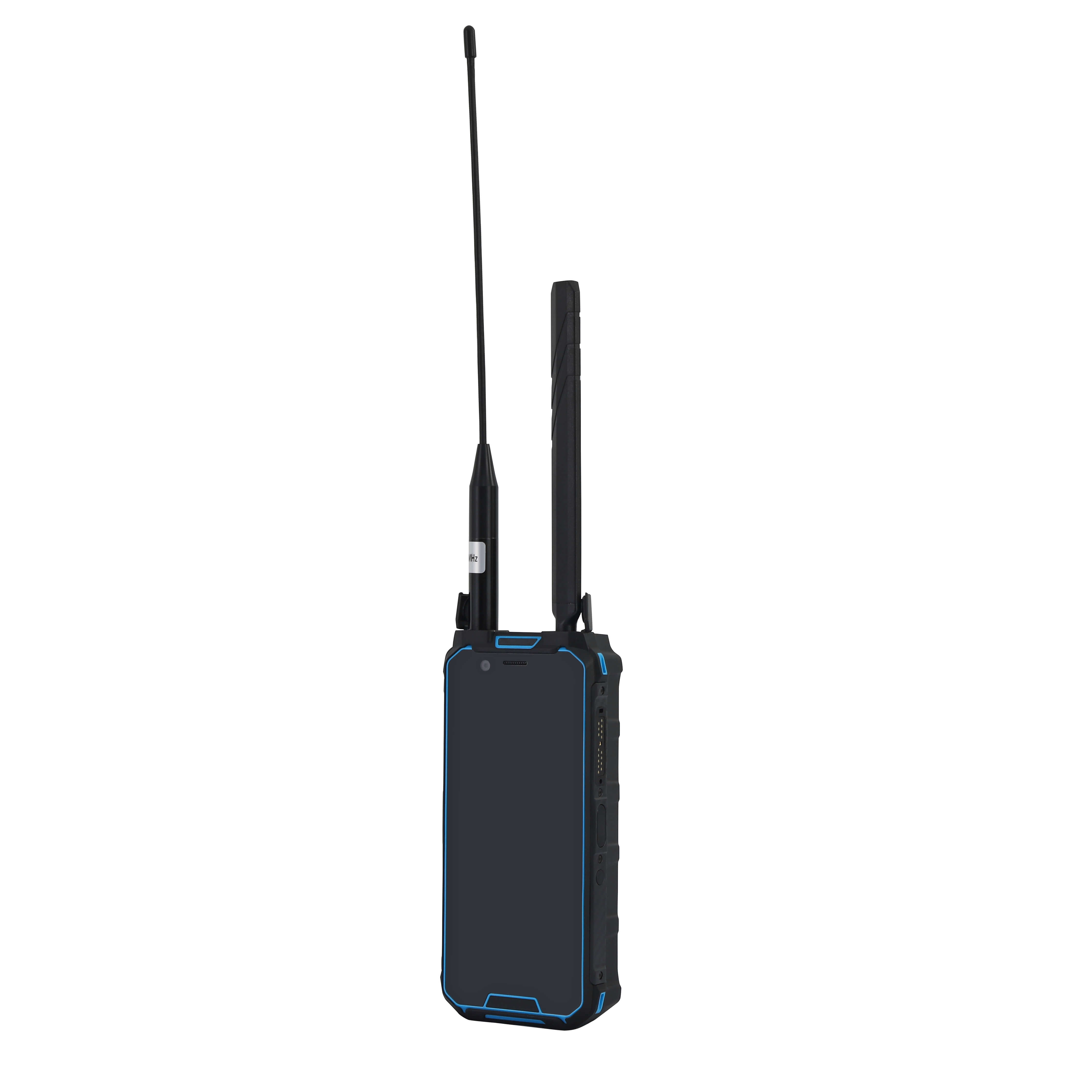

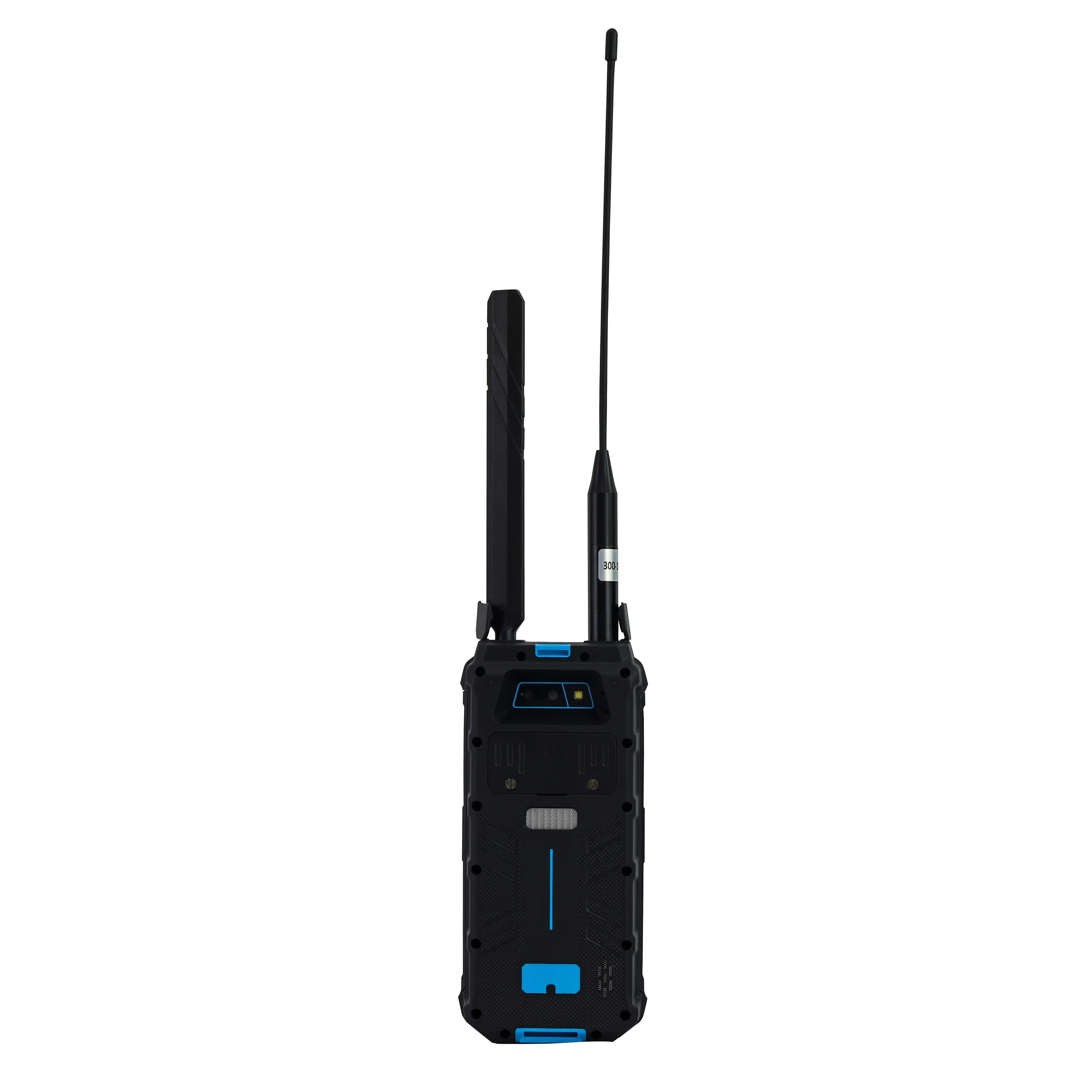

Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro
Handheld Drone Detection and Positioning Device BT2421pro is a new generation handheld drone detection and positioning device, enhancing the FPV drone detection capability. It can effectively detect low-frequency racing drones and decode their first-person flight perspective images.
This product integrates drone spectrum detection, protocol analysis, RID identification, and other regulatory functions into one unit, with a portable single-unit weight of approximately 650g. It can achieve real-time detection and early warning for the 900 series drones, accurately locating and tracking common drones and their operators (remote controllers). The design is compact and lightweight, easy to carry, with long battery life, and can be used in various low-altitude security operations.
Quantity:
库存： 0
Inquire
Add to Basket

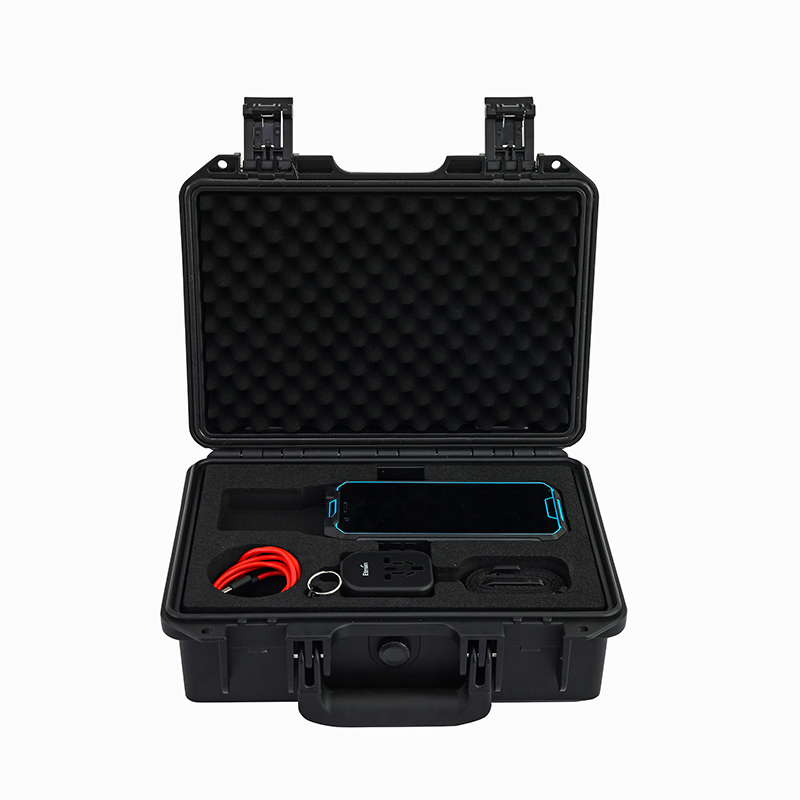

The hardware (accessories) of this product is composed as shown in the following table:

NO

Name

Quantity

Unit

Notes

1

Detection host

1

piece


2

Low frequency antenna

1

piece


3

Full band antenna

1

piece


4

Power adapter & charging cable

1

piece


5

Protective box

1

piece


6

European standard conversion plug

1

piece

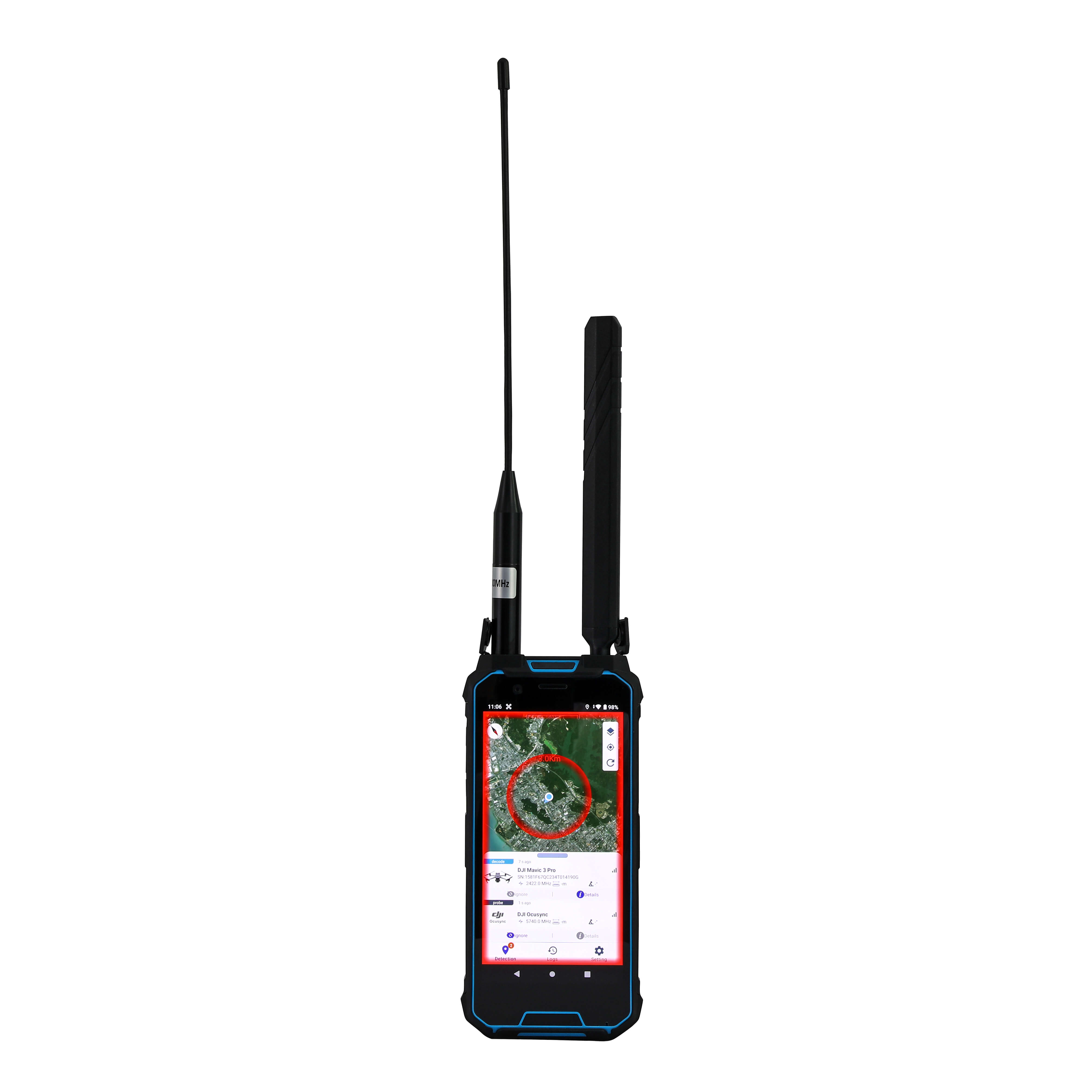

1) Drone positioning[1]：Locates the drones and shows the results as icons of drones on the e-map.

2) Pilot positioning[2]：Locates the remote controllers (pilots), and shows the results as icons of the remote controllers on the e-map.

3) FPV detection: capable of detecting and identifying homemade racing drones, real-time analysis of their first-person flight footage.

4) Pilot navigation[4]: BT2421pro plans the route for tracking drone controllers with easy operation.

5) RID detection[5]：BT2421pro is able to identify DJI drones (with OcuSync protocol), drones with RID, and the unique serial number (SN) of WIFI drones.

6) Comprehensive information[6]：Realtime display of the drone model, coordinates, velocity, altitude, pilot coordinates and so on.

7) Black and white list[7]：Once a white list is set, the alarm of BT2421pro will not be set off if the drone in white list is detected.

8) Early warning：The device will alarm by beeping or vibrating when detects the drone.

9) Trajectory playback: Assists security personnel to analyze historical drone flight data.

10) History records：The detection results will be saved for review, including SN, model, frequency band, etc.

11) Multiple languages：Supports English, Chinese, Russian, and Portuguese.


1) Racing drone detection: Newly upgraded low-frequency FPV detection capability, which can cover the frequency bands of most homemade racing drones.

2) Image demodulation: Real-time parsing of the first-person view (FPV) flight footage of FPV drones, with clearer image demodulation.

3) Portable and easy to use: When detecting and positioning common drones such as DJI and Autel, this device can operate normally without an external antenna, making it more portable and user-friendly.

4) Comprehensive regulatory coverage: Capable of detecting over 900 types of drones, including DJI (including O4), Autel, Feimi, etc.

5) Networking and interconnection: Can be connected to the low-altitude management platform to realize multi-device linkage and intelligent unified dispatching management of security zones.

6) Mobile and portable: The device weighs only ~658g, is portable for individual soldiers, and can be used immediately after being turned on.


NO

Indicator

Parameter

Notes

1

Frequency range

100MHz～6GHz


2

Detection radius

1~2km (urban environment)

2~3km (open environment)


3

Response time

3 ~ 5s


4

Targeting range

1~2km (urban environment)

2~3km (open environment)


5

Detection quantity

≥10


6

Dimensions

185mm*80mm*33mm


7

Weight

658 ± 10 g

With an antenna

8

Packing box size

L*W*H：335*260*130mm±5mm


9

Packing box weight (full)

2.5kg


10

Battery capacity

8000mAh

Built-in lithium battery

11

Operating time

～4h

When Screen brightness is 20%, temperature is 25℃

12

Charging duration

~2.5 h

With the original charger

13

Operating temperature

-35~50℃


14

Storage temperature

-40~40℃


15

Screen size

6-inch


16

Screen resolution

2160*1080 pixels


17

Memory

8GB


18

Storage

256GB


19

Operating system

Android 12


20

Network environment

Online / Offline



5的副本
