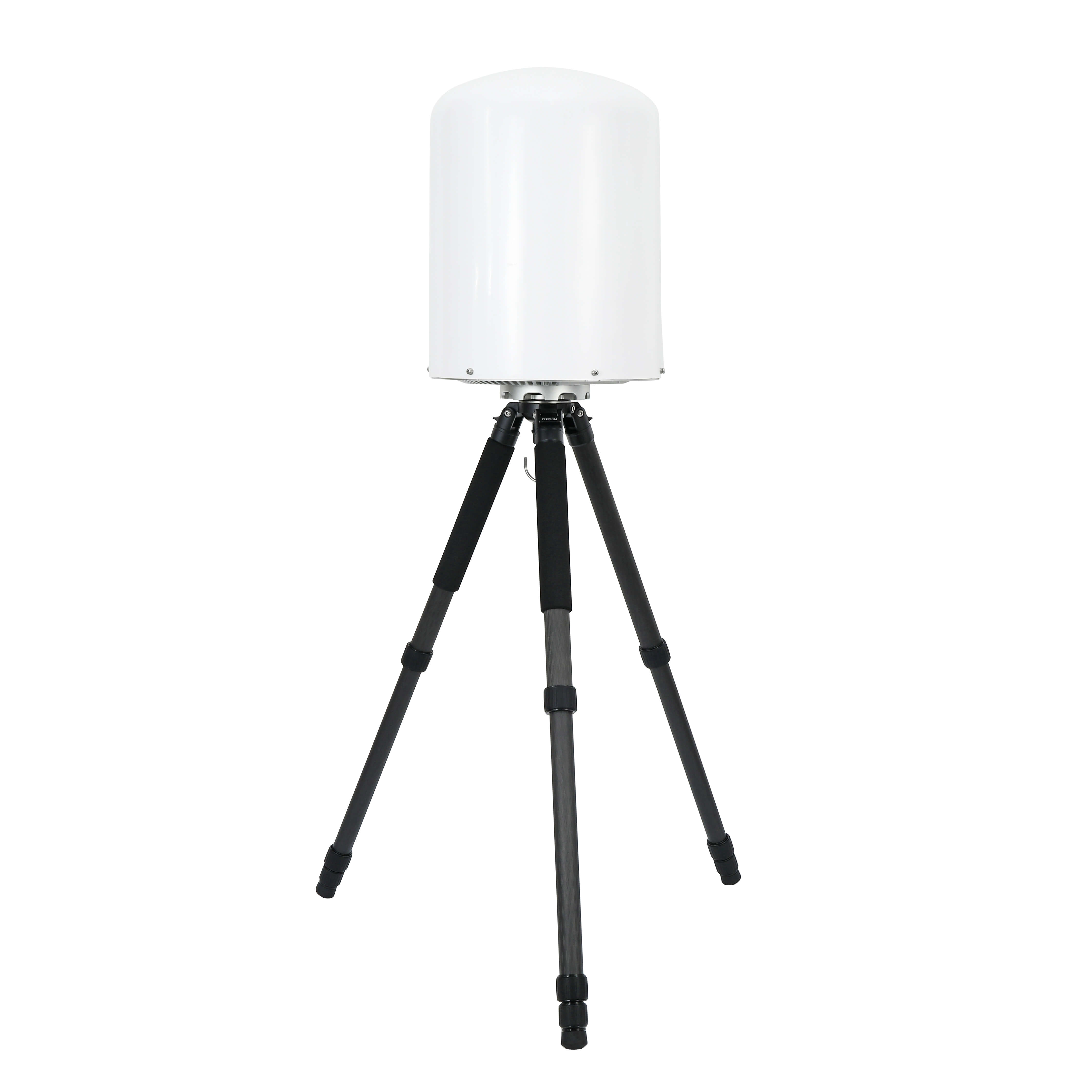

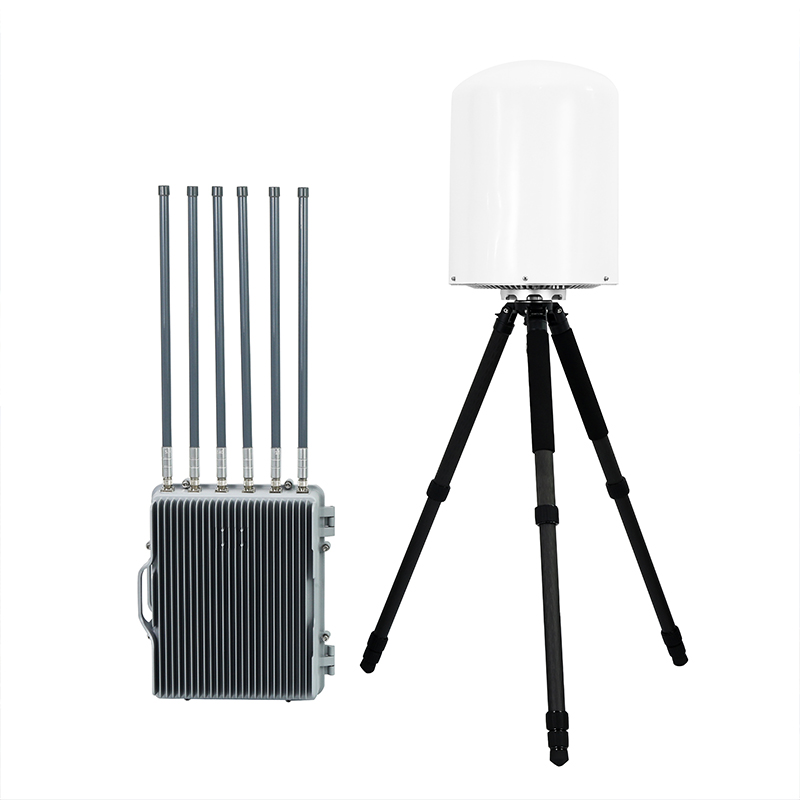

Integrated Drone Detection Jamming System BT2503

Integrated Drone Detection Jamming System BT2503 is Designed for large-scale security deployments. It enables multi-device synchronization, remote configuration, and real-time alerts via mobile devices through cloud server integration. Its AI-powered detection engine analyzes signals in 433MHz, 800MHz, 900MHz, 2.4GHz, 5.2GHz, 5.8GHz, and other frequency bands, identifying over 400 drone models and using a blacklist to distinguish between authorized and unauthorized drones.

With 70-6000MHz ultra-wideband detection, the system can simultaneously detect ≥150 drones at altitudes ≤0m with up to 99.99% accuracy. A multi-band jammer interrupts communication protocols, and an unattended mode enables automated threat response. GPS positioning and encrypted data transmission ensure secure deployment. Customizable FPV band extension (300-6200MHz analog signals for FPV drones) accommodates specialized requirements.

Quantity:

库存： 0

Inquire

Add to Basket

Function	Descriptions
UAV detection	Ø Detection spectrum bandwidth: 70 MHZ - 6GHZ, detection focus on the 433Mhz,900Mhz,2.4Ghz,5.2Ghz,5.8Ghz Ø Simultaneous screeningnumber of UAV: ≥150pcs Ø The lowest detection height: ≤0 meters Ø Detection rate: ≥99.99
White and Blacklist	Ø can identify 400+ different model UAV including DJI series drones,and it has the autonomous learning ability. Ø can carry on the accurate identification of target, in-depth analysis of UAV signal, the identification of unique ID, and the black and whitelist to distinguish. Ø Whitelist and a blacklist can be set for different targets of the same position, same frequency band, same manufacturer, same type of UAV respectively.
Defensive Interference	The device has interference capabilities of 900MHz, 433Mhz; 1.5ghz, 2.4ghz, 5.8ghz; 5.2Ghz and other customized frequency bands, and covers most of the UAV communication available in market.
Remote OAM	After turning on the fully self-movable defense, it can enter unattended mode, detect, and strike autonomously. And a variety of OAM features are available when used with the remote server, including firmware updating, resetting, status inquiry, self-testing, parameter configuration, and more.
GPS	can detect its current position using its built-in GPS.

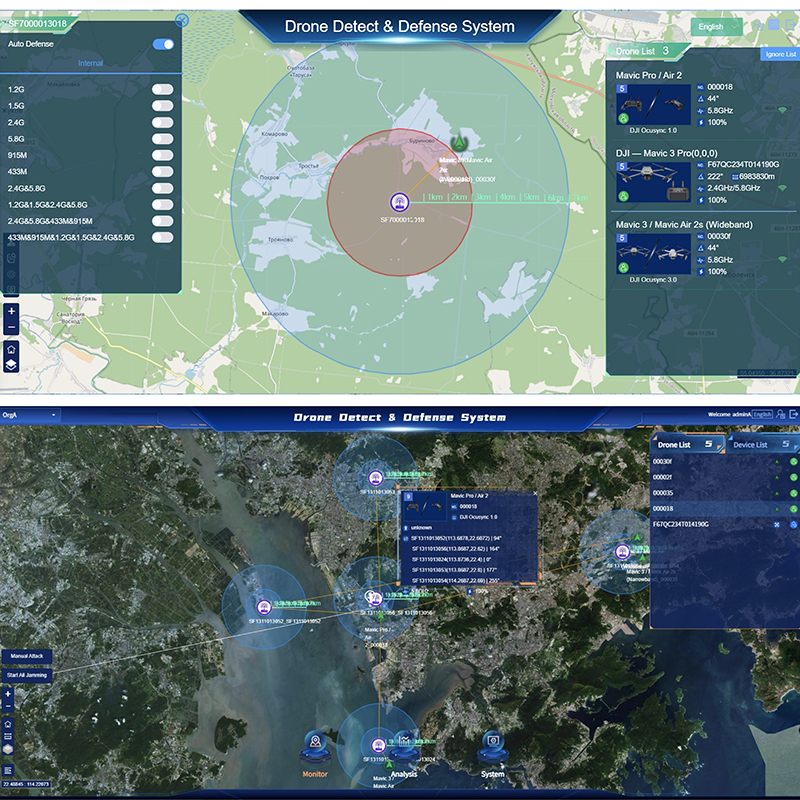

Networking	can network multiple devices through the cloud server, observe the online/abnormal status of each device, and control the device remotely through the mobile terminal (mobile phone IPAD), including but not limited to viewing the operating interface of the device system, receiving alarm information, viewing the black and whitelist, and turning on defense functions.
Data security	Use certificate management and data encryption between the equipment and server to ensure data reliability and security.
