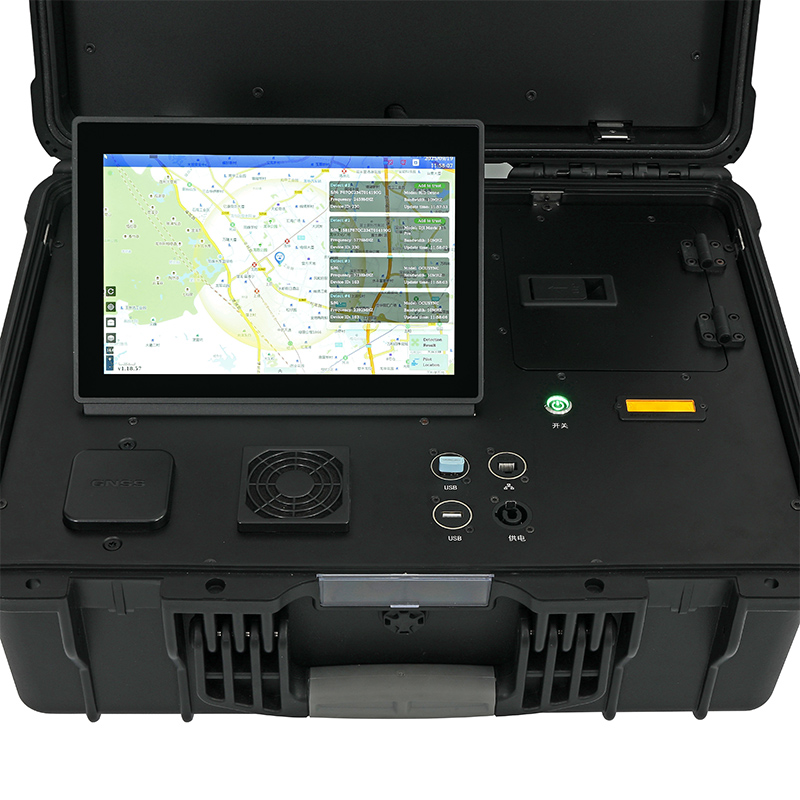

Suitcase Drone Detector Locator BT2504

The product is mainly composed of three parts: the main engine, detachable battery and power adapter, as shown in the following table:

Table 1 Product hardware composition details

1） Drone monitoring: can obtain the serial number, model, position (latitude and longitude, azimuth), speed, altitude, take-off point, return point, track, remote control position (latitude and longitude, azimuth) of the Drone within the monitoring range;

2） Unique identity code identification^[1]: can identify the unique serial number of the Drone and confirm the unique identity information of the Drone;

3） Drone positioning ^[2]: can locate the position information of the Drone, display the position (latitude and longitude), orientation information and distance information (the distance between the Drone and the equipment) in real time;

4） Flyer positioning ^[3]: can locate the position information of the flyer, display the position (latitude and longitude), orientation information and distance information (the distance between the flyer and the equipment) in real time;

5） Multi-target trajectory tracking ^[4]: can track the positioning of Drone swarm and display multiple flight trajectories of Drone;

6） Black and white list ^[5]: can distinguish cooperative and non-cooperative Drones, the device does not give an alarm when cooperative Drones are detected, and can mark trust for cooperative Drones;

7） Intrusion alarm: when the device detects the intrusion of a Drone, it will sound or light alarm;

8） Track playback ^[6]: Support Drone flight trajectory playback to assist security personnel to analyze historical Drone flight data;

9） Detection records ^[7]: The detection records list can retain historical detection records, including multi-dimensional information such as Drone serial number, model and frequency;

10） RID monitoring ^[8]: equipped with RID identification function and supports a variety of standard protocols.

11） Data visualization analysis: support for Drone detection and flight data statistical analysis, can be presented by heat map, line chart and other visual icons;

12） Electronic map: Electronic map switching, including Gaode, Baidu and Google;

13） Cross-terminal connection: The display system interface can be connected through mobile terminals (mobile phones, computers, etc.), so that security personnel can search for the location of pilots and Drones through mobile terminals.

14） Source detection: the equipment does not emit any electromagnetic signal, no electromagnetic pollution, environmental friendly;

[1]-[7] can be identified as DJI series models using OcuSync map transmission mode.

[8] GB 42590-2023、ASTM F3411 Remote ID、ASD-STAN prEN 4709-002

1） Complete range of detection models: the system can identify and detect most common brand Drones such as DJI, Autel Robotics, FIMI ,Yuneec and other self-made Drones such as cross Drones and WiFi Drones;

2） Long detection distance: in open environment, the detection distance of some models can reach more than 10km;

3） Software and hardware integration: equipped with the integrated control platform of Drone, the single machine works independently without the need to configure other equipment;

4） FPV detection: the new upgraded low-frequency detection capability can effectively improve the detection of FPV models;

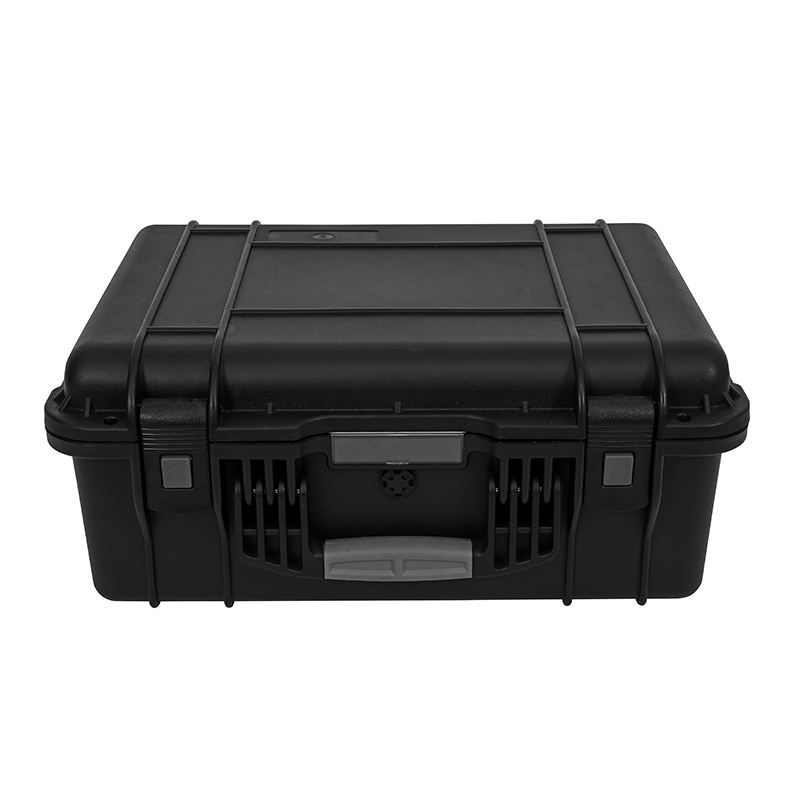

5） Portable: suitcase-style portable design, small size, carry around;

6） Touch interaction design: adopt large screen touch design, simple operation, fast and convenient;

7） Double power supply design: the equipment can be powered by detachable batteries or external power supply, adapting to multiple scenarios;

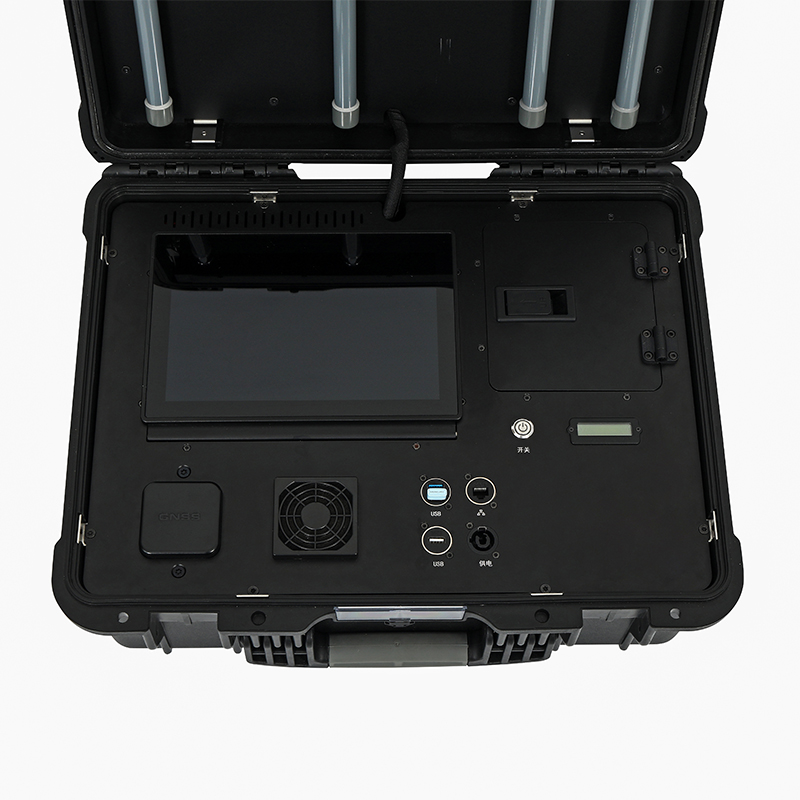

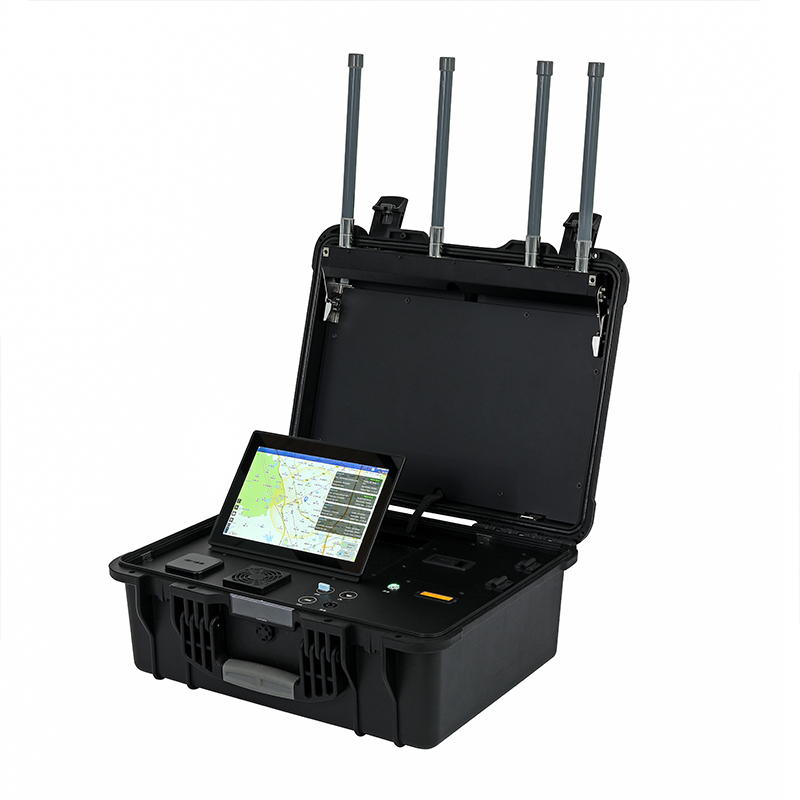

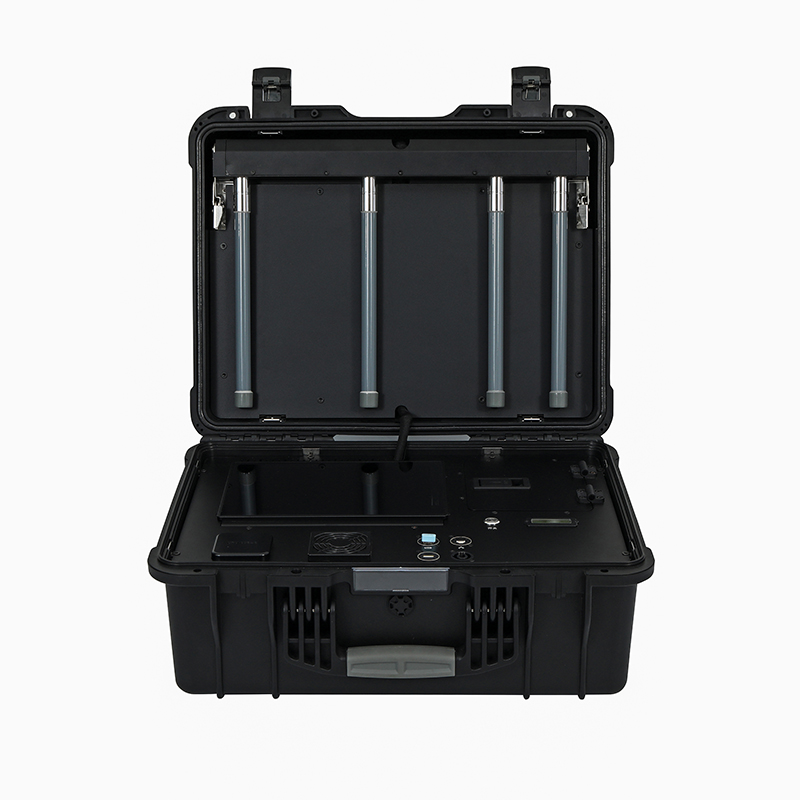

8） Convenient deployment: The device antenna adopts the foldable storage design, which can be unfolded and retracted quickly, and can be switched on and off with one button to use it at any time.
