Main Features
· Full-Spectrum Precision Detection: The system provides ultra-wideband coverage from 100 MHz to 8 GHz with a 1 MHz tuning step, ensuring no blind spots across the spectrum. It captures real-time analog video signals for drone-occupied bands with industry-leading low false alarm rates while simultaneously displaying critical data such as drone type, signal frequency, and signal strength.
· Broad Industry Compatibility: Offers comprehensive support for detecting mainstream drone brands, including DJI, Autel, and other industry-leading manufacturers.
· Enhanced Direction-Finding (DF) Capabilities: The system supports optional directional antennas, allowing operators to locate signal sources by analyzing dynamic signal strength changes, significantly improving locking efficiency and detection accuracy.
· Real-Time Video Feedback: Capable of intercepting real-time FPV (First Person View) analog video feeds within the 100 MHz – 8 GHz range. It features dual display modes: direct viewing on the integrated screen or exporting high-definition imagery to external terminals via a proprietary magnetic interface.
· Countermeasure System Integration: The magnetic interface facilitates rapid synchronization with backpack-type jammers, establishing an integrated "detect-and-defeat" platform to enhance airspace control and operational efficiency.
· Ruggedized Environmental Adaptability: Engineered for extreme conditions, the device maintains stable, fault-free operation in temperatures ranging from -20 °C to +60 °C.
· Superior Ingress Protection: Rated at IP54, the housing is resilient against dust and water splashes, ensuring reliable performance in harsh outdoor environments.
· High-Efficiency Power Management: Supports 35W fast charging, enabling a full charge in just 1 hour to minimize operational downtime.
· Extended Battery Life: Equipped with a replaceable 2,900 mAh high-performance lithium-ion battery, providing up to 7 hours of continuous operation for prolonged missions.
· Wireless Data Synchronization: Features integrated Bluetooth for real-time telemetry and monitoring data transmission to compatible remote terminals, enhancing command and control convenience.
3 Key Parameters
Description | Specifications |
Frequency Range | 100MHz-8000MHz |
Video Frequency Range | 100MHz-8000MHz analog video transmission |
Recognition type | OFDM HD video transmission signal, FM analog video transmission through the aircraft |
Detection Range | ≥ 1km (The detection range of drones may vary across different frequency bands and transmission power levels. Replacing with a high-gain directional antenna can extend the detection range) |
Alert Modes | Vibration, Sound |
Data Logging | Built-in storage records |
Interface | Proprietary Magnetic Cable |
Startup Mode | Long press the power button for 3 seconds |
Power Supply | Removable lithium battery (Supports Type-C fast charging) |
Endurance | 2,900mAh battery provides approximately 7 hours of use (single battery) |
Control Method | Button operation, supports sound adjustment, screen backlight activation, and drone detection Information view |
Environmental Adaptation | Operating Temp: -20 °C to +60 °C; Storage Temp: -40 °C to +85 °C |
Protection Rating | IP54 (Dust and splash resistant) |
Dimensions&Weight | Approx. 164 mm × 44 mm × 68 mm (Main unit without antenna) Approx. 580 g (Including battery and antenna) |
Notes：
1. All Specifications Are Subject to Change Without Prior Notice or Liability.
2. Avoid Using Near Strong Interference Sources Such as Radar Stations or Jammers, as High-Power Signals May Cause Equipment Damage.

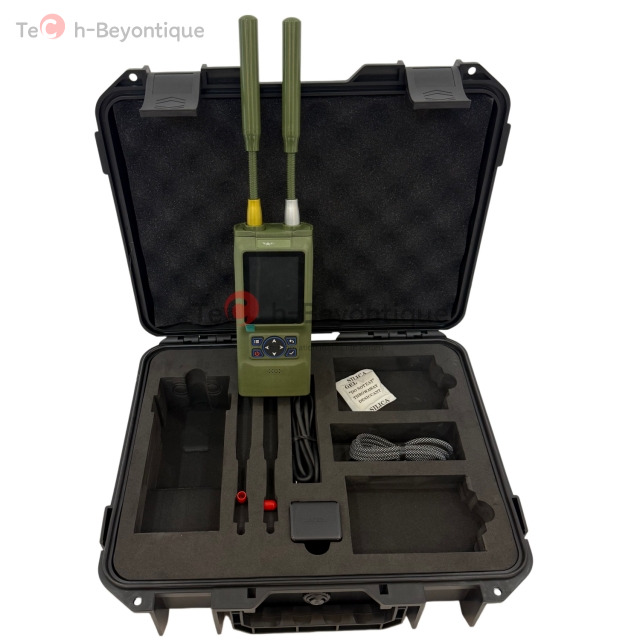

4 Packing List
Order number | Item name | Quantity |
1 | Main Unit | x1 |
2 | Lithium polymer battery | x1 |
3 | Exploring antenna | X2 |
4 | Debug Cable | x1 |
5 | Type-C charging Cable | x1 |
6 | Charger | x1 |
