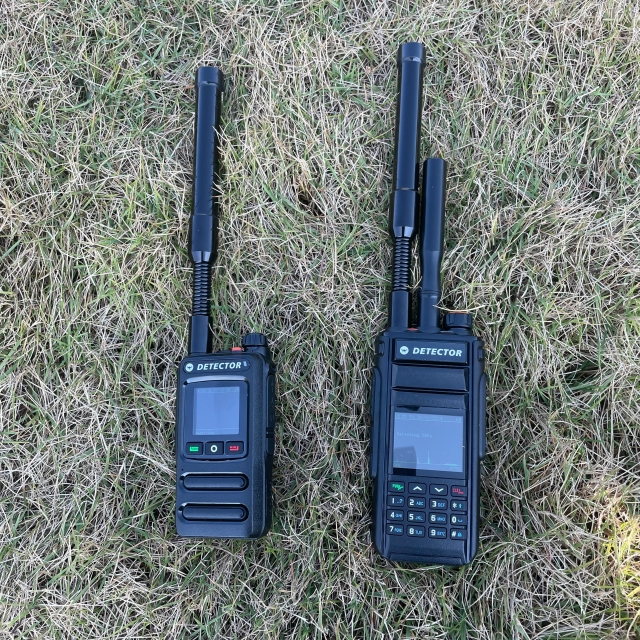

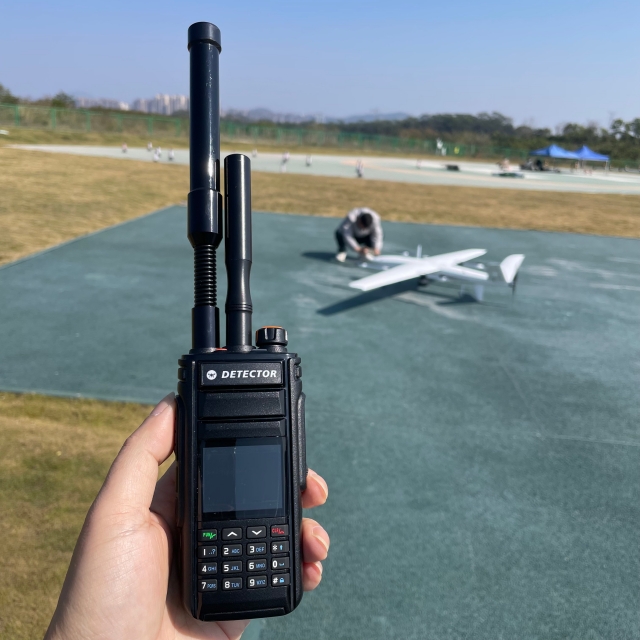

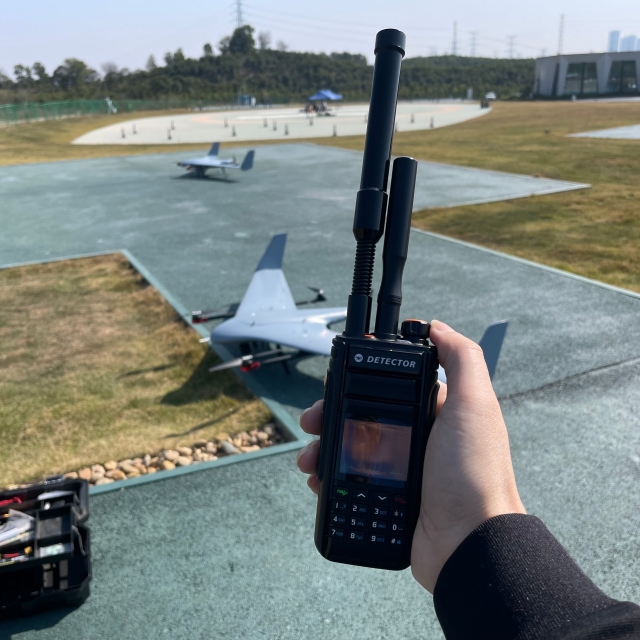

Portable Handheld FPV Drone Detector BT2415
Portable Handheld FPV Drone Detector BT2415
Portable Handheld FPV Drone Detector BT2415
Portable Handheld FPV Drone Detector BT2415
Portable Handheld FPV Drone Detector BT2415
Portable Handheld FPV Drone Detector BT2415
Portable Handheld FPV Drone Detector BT2415
Portable Handheld FPV Drone Detector BT2415
The Portable Drone Detector BT2415 adopts a low-power design and highly integrated design, capable of detecting mainstream DJI, Autel and other rotary wing drones using OFDM high-definition image transmission, as well as various DIY crossings using analog image transmission signals. The device adopts dual antennas and multi-channel simultaneous scanning, which has the characteristics of fast detection speed, high detection sensitivity, long detection distance, low false alarm rate, strong scalability, and easy use.
Quantity:
库存： 0
Inquire
Add to Basket
Features
Passive Detection of Drones: Able to identify rotary wing drones such as DJI and Daotong that use OFDM high-definition image transmission; Can detect various types of time traveling machines using analog image transmission within 300MHz-6200MHz.
Sound and light alarm: headphone sound alarm, external sound and light alarm.
Log recording: It has alarm log recording and can export alarm logs through USB interface.
Headphone function: capable of obtaining alarm sound through headphones.
Firmware upgrade function: Upgrade firmware through the Type-C interface.
Multi language switching: supports English and Russian.
Work status display: time, battery level, equipment status
Working modes: default mode, key frequency band scanning mode (later supported), user-defined feature library scanning mode (later supported).
Custom detection: Users can modify, delete, or add detection drone feature libraries through the type-c interface.

Product Parameters


Drone Detection Frequencies300MHz-6.2GHz
UAV detection distanceup to 1.5 km
Identify typeOFDM high-definition image transmission signal, time traveling machine FM analog image transmission
Detection sensitivityBetter than -96dBm
Detecting alarm methodsHeadphones, sound and light
Log recordingSupport no less than 500 alarm records
Power supplyDetachable lithium battery (Type-C charging)
Battery life from one batteryup to 6 hours
Battery type and capacitylithium, 4000 mAh
Antenna connectorsSMA, 2 pcs
Charging portDC 3.5 mm, USB Type-C
Headphone connectorJack 3.5 mm
Operating temperature rangefrom -20°С to +45°С
Product weight500g(Battery included, no antenna included)
Maximum endurance≥6h(Detection mode in standby state)
Product dimensions135 x 60 x 35 mm (host without antenna)
Startup methodKnob button, rotate to start
Control methodKey operation, supporting sound adjustment, screen backlight on, and drone detection information viewing function
