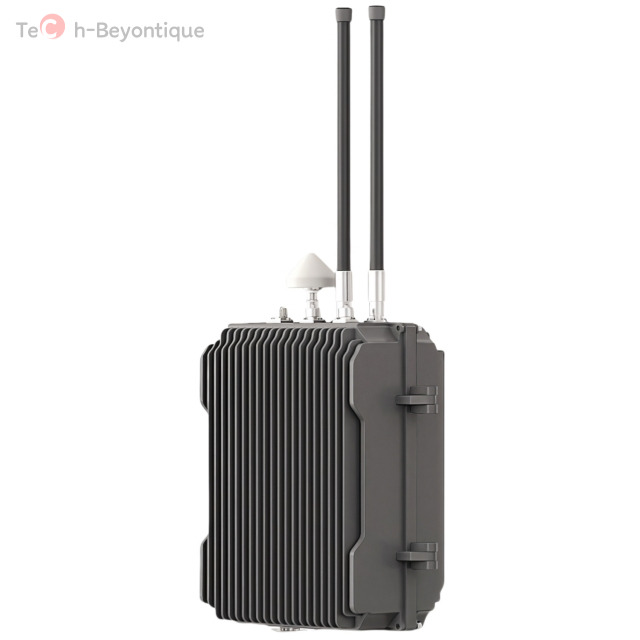

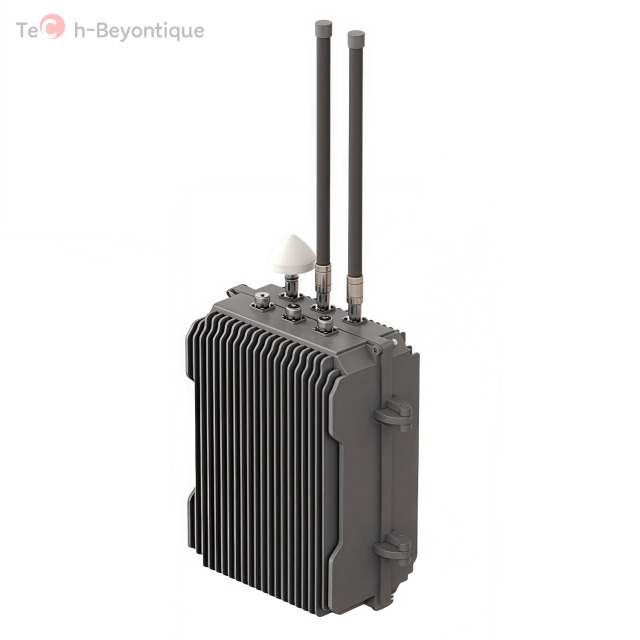

GNSS Spoofing Device BT2506

 Product Features

1. Support signal reception and analog transmission functions for commonly used frequency points of the four major global navigation satellite systems;

2. It can perform navigation deception on unmanned aerial vehicles that rely on satellite navigation positioning systems, achieving targets such as forced landing, heading guidance, prohibited takeoff, and navigation satellite signal interference;

3. Support external direction finding module to identify target orientation, use heading guidance function to control the horizontal forward, backward, left, and right movement of the target drone.

4.  Support external commands to control the combination and transmission of any navigation signal;

5.  Support external commands to set any position coordinates (longitude, latitude, altitude), and can also have built-in fixed coordinates;

6.  Support external command to set simulation parameters such as signal delay, motion speed, acceleration, etc;

7.  Support external command settings for preset trajectories such as linear motion and circular motion;

8.  Support external injection of motion trajectories, the device calculates and outputs corresponding navigation satellite signals based on input information;

9.  Support real-time ephemeris working mode and permanent ephemeris mode;

10.  Support setting preset coordinates for automatic power on transmission;

11.  Support satellite navigation signal suppression interference output;

12.  Provide secondary development control interfaces for serial ports and network;

 Main technical indicators

Technical indicators

• Supports GPS, BDS, GLONASS, Galileo navigation satellite signal simulation, with the following signal output frequency bands and channel numbers.

Navigation satellite signal reception frequency points: BDS B1I，BDS B2，GPS L1 C/A，GPS L2，GPS L5，GLONASS L1，GLONASS   L2，GALILEO E1，GALILEO E5，GALILEO E6.

Other frequency points, such as BDS B3I, can be expanded according to demand.

• RF total power: ≥350w(1.2CH ≥200w, 1.6CH ≥200w)

• Power adjustment range: 80dB

• Maximum operating distance: ≥30km (DJI P4P, antenna installation needs to ensure a certain height)

• Maximum operating height: ≥10km

• antenna Spec

• Power on start-up time: 40s;

• Navigation satellite signal synchronization time: ＜ 240s;

• RF PORT: 1 R,2T

• power supply:AC110-AC260V/50-60Hz

• working temperature:-40℃~+60℃

• Storage temperature:-40℃～+80℃
