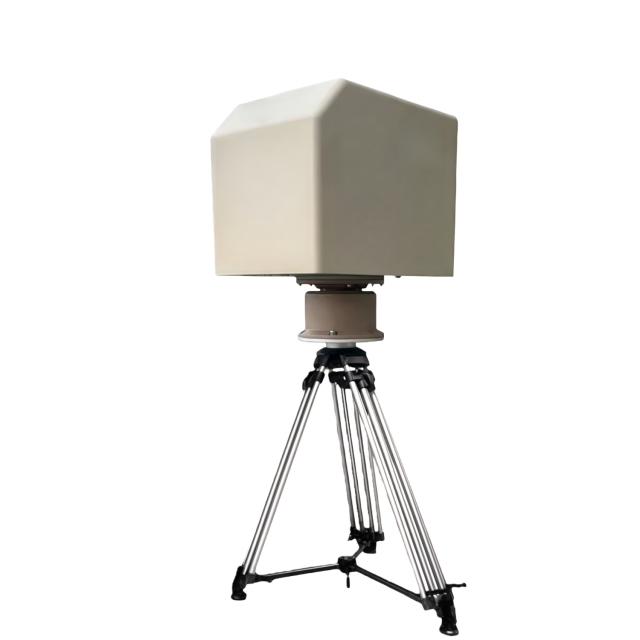

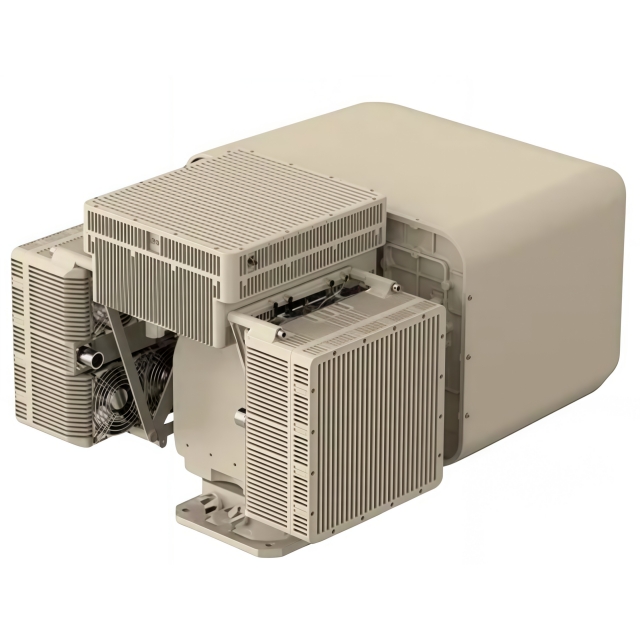

Full-Band Directional jammer BT2405
Full-Band Directional jammer BT2405
Full-Band Directional jammer BT2405
Full-Band Directional jammer BT2405
Full-Band Directional jammer BT2405
Full-Band Directional jammer BT2405
Full-Band Directional jammer BT2405
Full-Band Directional jammer BT2405
  Full-Bands(300-6000MHz) 3-5km Interference Suppression Anti Drone jammer Effective Against Various Types fpv drones Uavs System Blocker
             New design FPV anti Drone Jammer, Built-in high gain Omni-directional antenna, Built-in independently operated RF working unit, can power on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle, Coverage (3000-5000m) can be comprehensive and stable uninterrupted shielding of the Drone/UAV/FPV frequency band.
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of protected important places, etc. that forbid aerial photography by use of Drone/UAV/FPV.
Quantity:
库存: 0
Inquire
Add to Basket

Features:
1. The non-gun type design is easy to conceal and does not require a turntable to achieve 360-degree omnidirectional and directional;
2. Achieve any communication frequency interference within the entire frequency band, including unmanned aerial vehicles in unconventional frequency bands and frequency-modified UAVs;
3.Supports simultaneous suppression of up to five frequency bands, each output signal is 30W, ensuring the suppression needs of applications and new drones;
4. Based on the dynamic tracking results (frequency range, orientation) discovered by  the reconnaissance equipment, the countermeasure equipment can achieve guided precision strikes, forcing the aircraft to make an emergency landing and return;
5. Selective configuration of interference can be achieved, such as directional suppression, sector suppression, omnidirectional suppression and other options, without the need to rotate the equipment;
6.The interference parameters can be set to ensure effective combat against various types of UAVs


No.Performance parameters

Modle No: BT2405Product name: Directional Writing-frequency Jammer
1Power supplyPower supply mode: AC220V
Power supply voltage adaptability: AC220V±10%, 50±3Hz
2Work frequency300MHz~6000MHz;
3Total RF power≥500w
4Effective jamming distance>=3km
5Multi-target processing performanceSimultaneously interfere with multiple UAV signals in different frequency bands, and can respond to the simultaneous intrusion of multiple sorties and brands of UAVs (in the same direction), and can effectively intercept and drive away the target UAV.
6Number of channels5
7Remote control functionThe device has networking capabilities and can be controlled remotely
8Linkage functionIt can control the gimbal to rotate and point to the direction of the target drone by receiving the target position information sent by the radar or photoelectric system to complete directional electronic interference.
9Remote control functionThrough the remote control, the device can be controlled in pitch and vertical direction, and each channel can be turned on or off.
10Interference methodDirectional suppressive interference
11Antenna main lobe widthHorizontal beamwidth ≥20° Vertical beamwidth ≥20°
13PTZ rotation indicatorhorizontal angle360°
14pitch angle-30°~+60°
15spinning speedhorizontal ≥60°/s,
16vertical ≥12°/s;
17Environmental testingpositioning accuracy0.5°
18lowest temperature-40 ºC
19highest temperature70 ºC
20Protection levelIP54
