Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408
Backpack Drone Jammer BT2408

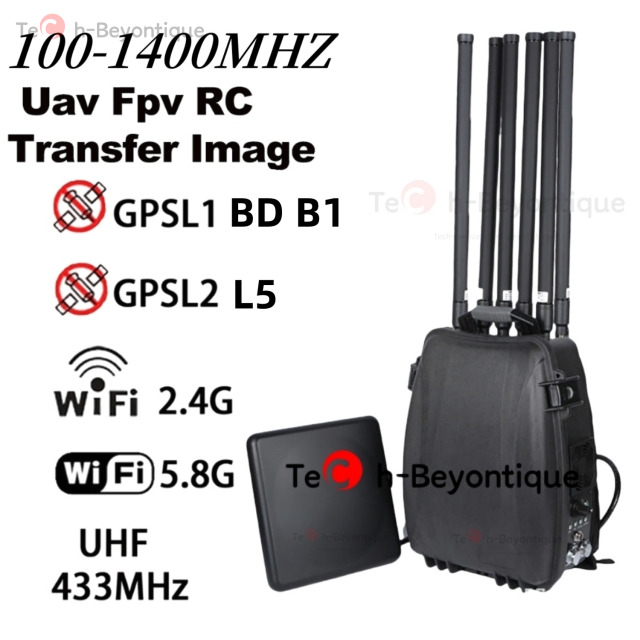

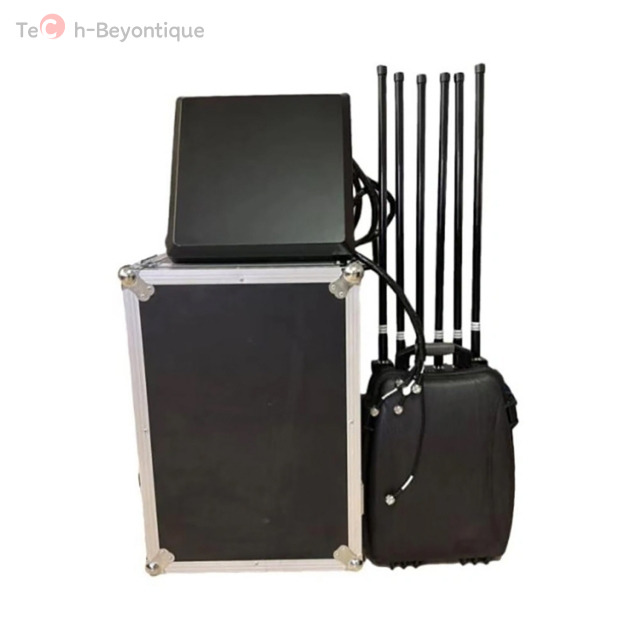

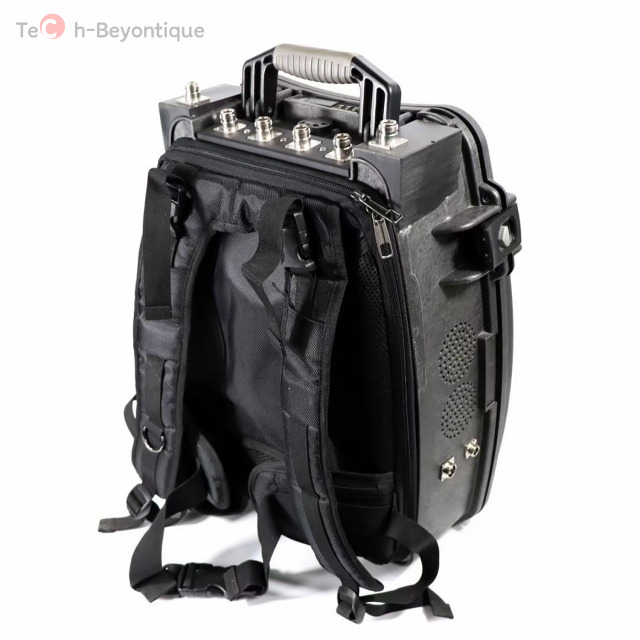

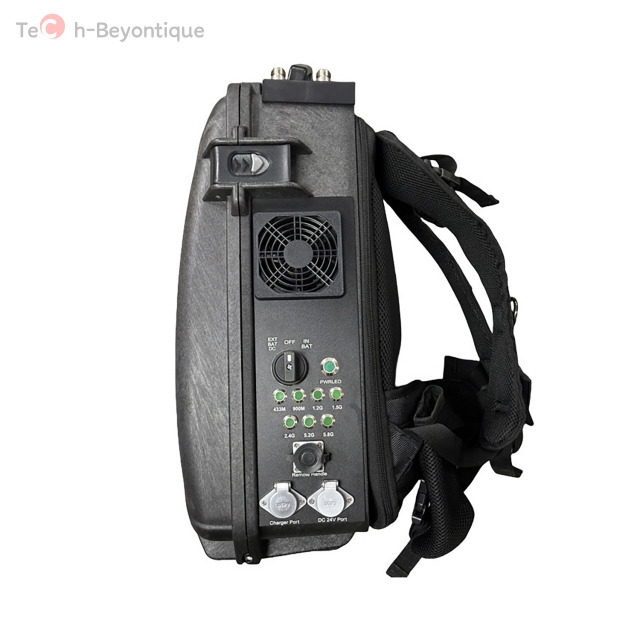

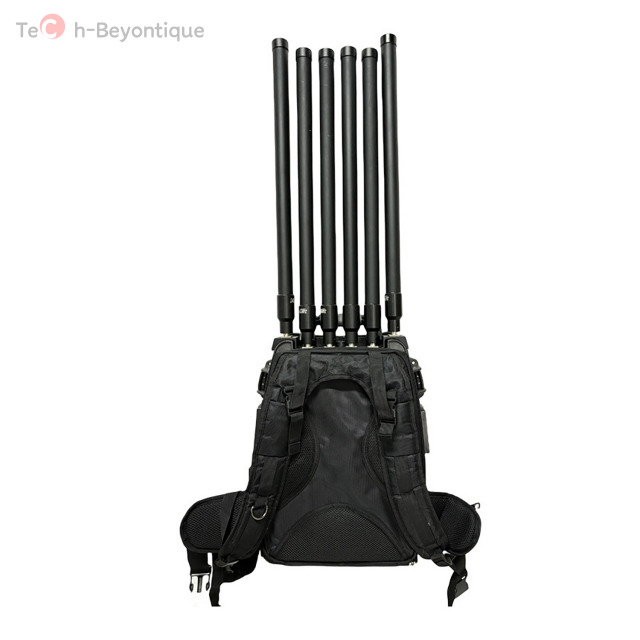

This anti drone signal jammer can drive drone away or force drone landing. The jamming range can reach 1 - 1.5km, especially for an indispensable task force. It comes with a backpack for carrying the jammer box, which can be easily transferred to the action site by only one person, and can be deployed off-road and in buildings.
Quantity:
库存： 0
Inquire
Add to Basket

Frequency Band option:  6 / 7 / 8 bands
The frequency of each band can be customized.
FPV frequencies can also be customized: 260M, 350M, 400M, 650M, 700M...

The appearance / use form can also be customized: backpack or car


The new generation drone detector has a wide range of drone detection frequencies: from 300 to 6200 MHz. It operates without emitting airwaves for up to 12 hours (2 batteries), detects all major UAVs. The device allows you to detect an unmanned aerial vehicle at a distance of up to 1.5 km.

Technical Specification

Drone Detection Frequencies: 300MHz-6.2GHz
UAV detection distance: up to 1.5 km;
Battery life from one battery: up to 6 hours;
Battery type and capacity: lithium, 2000 mAh
Antenna connectors: SMA, 2 pcs;

Drone Detection Frequencies300MHz-6.2GHz
UAV detection distanceup to 1.5 km
Battery life from one batteryup to 6 hours
Battery type and capacitylithium, 2000 mAh
Antenna connectorsSMA, 2 pcs
Operating temperature rangefrom -20°С to +45°С
Product weight300g(Battery included, no antenna included)
Maximum endurance≥6h(Detection mode in standby state)


The frequency of each band can be customized.

Working principleRadio signal jamming suppression
Object of actionUav image transmission signal transmission
Operating frequency band Option 16 BandFrequencyOutput power
400-470MHz50W/47dbm
820-960MHz50W/47dbm
1550-1620MHz50W/47dbm
2400-2500MHz50W/47dbm
5100-5300MHz50W/47dbm
5725-5850MHz50W/47dbm
Operating frequency band Option 28 BandFrequencyOutput power
260MHz50W/47dbm
350MHz50W/47dbm
450MHz50W/47dbm
650MHz50W/47dbm
800MHz50W/47dbm
1.0GHz50W/47dbm
2.4GHz50W/47dbm
5.8GHz50W/47dbm

Coverage

1000~1500 meter, depends on real environment

Antenna

Optional:
type A: OMNI directional Fiberglass Antennas
type B: directional Panel Antennas

Total output power

400W

Control mode

landing or expelling

Battery Endurance

60~90mins

Net Weight

15.8KG, Packing Weight:20kg

Product Size

488 x 369x 147mm

Quality Warranty

12 Months
