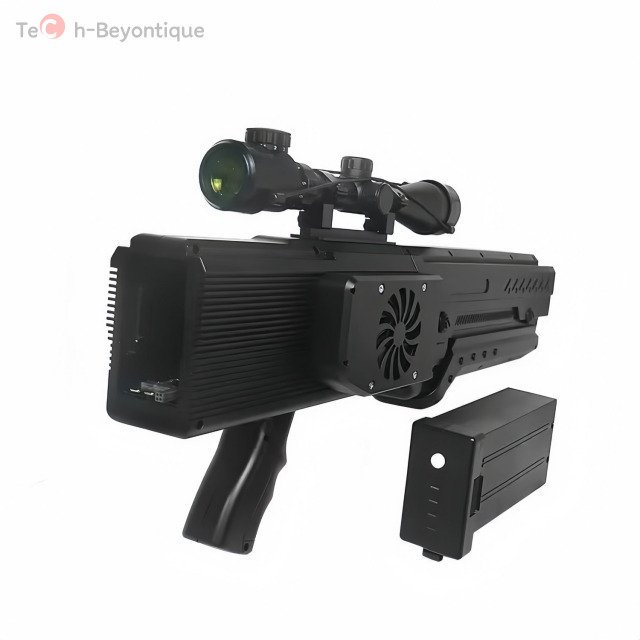

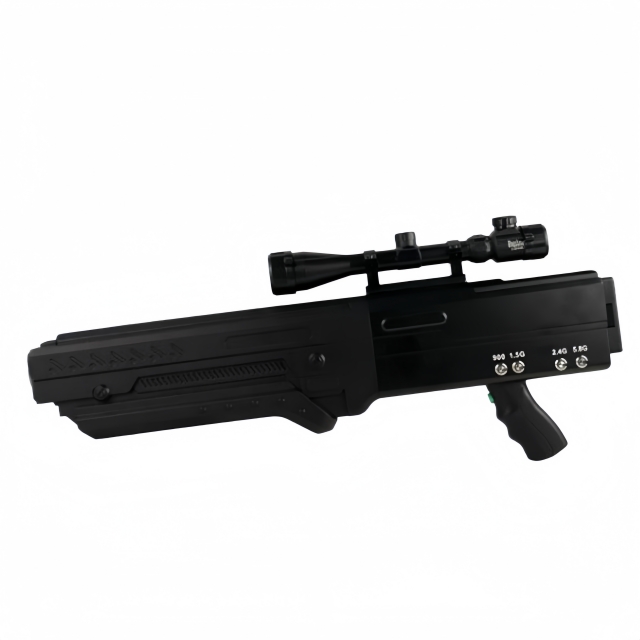

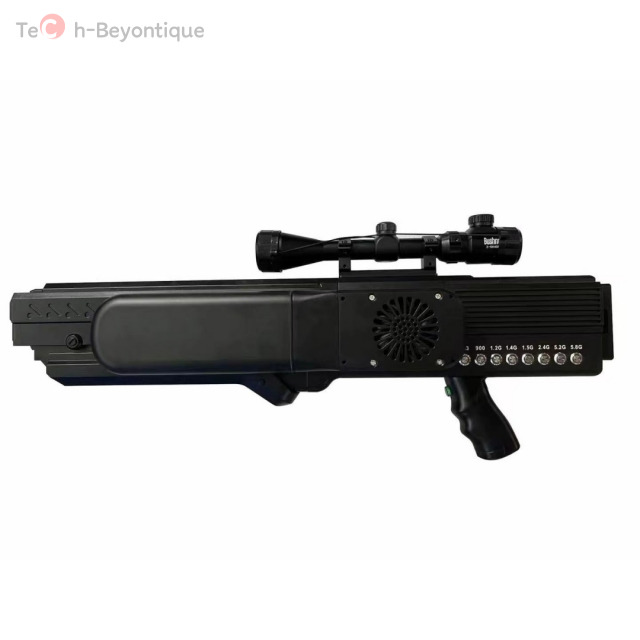

Anti Drone Gun Jammer BT2306

No.

Performance parameters

Note

Modle No.:

BT2304/BT2306/BT2308

Product name:

Anti Drone Gun

1

Working principle

Radio jamming suppression

1; Forced landing of DJI type drones; on; 1.5G, 2.4G, 5.8G
Drive off DJI class drones; on; 2.4G, 5.8G
2; forced landing of DOTON drones; on; 1.5G, 2.4G, 5.2G, 5.8G
Drive-off drones; on; 2.4G, 5.2G, 5.8G
3; 433M remote control is the remote control band for home-made drones, which we commonly see; TV remote control, car keys, children's toy flying machines, etc.
4; 900M is the remote control band for industrial grade drones, we commonly see them in the police, custom drones, large drones, etc.
5; 1.2G is China's self-developed BeiDou navigation system, which will also be used in the drone industry in the future, as a second positioning system to 1.5G (GPS), currently in the published data, and will be used in the future
6; 1.4G is a special class of UAVs with a relatively small number of applications in the industry, but its use cannot be ruled out

2

Object of action

UAV map transmission, flight control links, navigation signals

3

Operating frequency band
(optional)



Standard 6 bands:
433, 900, 1.2, 1.5, 2.4, 5.8

Standard 8 bands:
433, 900, 1.2, 1.4, 1.5, 2.4, 5.2, 5.8

Band

Frequency

Output power

4

433M

400-450MHz

10W

5

900M

840-930MHz

10W

6

1.2G

1160-1280MHz

10W

7

1.4G

1350-1450MHz

10W

8

1.5G

1550-1630MHz

30W

9

2.4G

2380-2500MHz

30W

10

5.2G

5150-5300MHz

30W

11

5.8G

5720-5880MHz

30W

12

Coverage angle

Horizontal：-45°~45° Vertical：-45°~45°

13

Maximum number of simultaneous transmission channel

8

14

Quantities of simultaneous
jamming

10

15

Cover distance

1km(Depends on different drone models)

16

Jamming success rate

>95%

17

Interception response time

<3s

18

Operating temperature

–35℃～55℃

19

Overall power consumption

<150

20

Power supply voltage

220V AC

21

Size

710*290*70±5mm

22

Weight

≤5.5kg

23

Power

AC220V-DC24V

24

Working time

≥20 minute

25

Material

Aluminium + high performance plastic

26

Antenna type

Directed
